This article is in large part the same of what I have published in the Percona blog. However I am reproposing it here given it is the first some other benchmarking exercise that I am probably going to present here in an extended format, while it may be more concise in other platforms.

In any case why this tests.

I am curious, and I do not like (at all) what is happening around MySQL and MariaDB, never like it, but now is really think is time to end this negative trend, that is killing not only the community, but the products as well.

The tests

Assumptions

There are many ways to run tests, and we know that results may vary depending on how you play with many factors, like the environment or the MySQL server settings. However, if we compare several versions of the same product on the same platform, it is logical to assume that all the versions will have the same “chance” to behave well or badly unless we change the MySQL server settings.

Because of this, I ran the tests ON DEFAULTS, with the clear assumption that if you release your product based on the defaults, that implies you had tested with them and consider them the safest for generic use.

I also applied some modifications and ran the tests again to see how optimization would impact performance.

What tests do we run?

High level, we run two sets of tests:

• Sysbench
• TPC-C (https://www.tpc.org/tpcc/) like

The full methodology and test details can be found here, while actual commands are available:

• Sysbench
• TPC-C

Results

While I have executed the whole set of tests as indicated on the page, and all the results are visible here, for brevity and because I want to keep this article at a high level, I will report and cover only the Read-Write tests and the TPC-C.

This is because, in my opinion, they offer an immediate and global view of how the server behaves. They also represent the most used scenario, while the other tests are more interesting to dig into problems.

The sysbench read/write tests reported below have a lower percentage of writes ~36% and ~64% reads, where reads are point selects and range selects. TPC-C instead has an even distribution of 50/50 % between read and write operations.

Sysbench read and write tests

Test using default configurations only MySQL in different versions.

Small dataset:

Optimized configuration only MySQL:

Large dataset using defaults:

Using optimization:

The first two graphs are interesting for several reasons, but one that jumps out is that we cannot count on DEFAULTS as a starting point. Or, to be correct, we can use them as the base from which we must identify better defaults; this is also corroborated by Oracle's recent decision to modify many defaults in 8.4 (see article).

Given that I will focus on the results obtained with the optimized configs.

Now looking at the graphs above, we can see that:

1. MySQL 5.7 is performing better in both cases just using defaults.
2. Given bad defaults, MySQL 8.036 was not performing well in the first case; just making some adjustments allowed it to over-perform 8.4 and be closer to what 5.7 can do.

TPC-C tests

As indicated, TPC-C tests are supposed to be write-intensive, using transactions and more complex queries with join, grouping, and sorting.

I was testing the TPC-C using the most common isolation modes, Repeatable Reads, and Read Committed.

While we experienced several issues during the multiple runs, those were not consistent, mainly due to locking timeouts. Given that, while I am representing the issue presence with a blank in the graph, they are not to be considered to impact the execution trend but only represent a saturation limit.

Test using optimized configurations:

Test using optimized configurations:

In this test we can observe that MySQL 5.7 is better performing in comparison with the other MySQL versions.

What if we compare it with Percona Server for MySQL and MariaDB?

I will present only the optimized tests here for brevity because, as I saw before, we know defaults are not serving us well.

When comparing the MYSQL versions against Percona Server for MySQL 8.0.36 and MariaDB 11.3, we see how MySQL 8.4 is doing better only in relation to MariaDB; after that, it remains behind also compared to MySQL 8.0.36.

TPC-C

As expected, MySQL 8.4 is not acting well here either, and only MariaDB is performing worse. Note how Percona Server for MySQL 8.0.36 is the only one able to handle the increased contention.

What are these tests saying to us?

Frankly speaking, what we get here is what most of our users get as well, but on their own skin. MySQL performances are degrading with the increase of versions.

For sure, MySQL 8.x comes with interesting additions; however, if you consider performance as the first and most important topic, then MySQL 8.x is not any better.

Having said this, we must say that probably most of the ones still using MySQL 5.7 (and we have thousands of them) are right. Why embark on a very risky migration and then discover that you have lost a considerable percentage in performance?

Regarding this, if we analyze the data and convert the trends into transactions/sec, we can identify the following scenarios if we compare the tests done using TPC:

As we can see, the performance degradation can be significant in both tests, while the benefits (when present) are irrelevant.

In absolute numbers:

In this scenario, we need to ask ourselves, can my business deal with such a performance drop?

Considerations

When MySQL was sold to SUN Microsystems, I was in MySQL AB. I was not happy about that move at all, and when Oracle took over SUN, I was really concerned about Oracle's possible decision to kill MySQL. I also decided to move on and join another company.

In the years after, I changed my mind, and I was supporting and promoting the Oracle/MySQL work. In many ways, I still am.

They did a great job rationalizing the development, and the code clean-up was significant. However, something did not progress with the rest of the code. The performance decrease we are seeing is the cost of this lack of progress; see also Peter's article Is Oracle Finally Killing MySQL?.

On the other hand, we need to recognize that Oracle is investing a lot in performance and functionalities when we talk of the OCI/MySQL/Heatwave offer. Only those improvements are not reflected in the MySQL code, no matter if it is Community or Enterprise.

Once more, while I consider this extremely sad, I can also understand why.

Why should Oracle continue to optimize the MySQL code for free when cloud providers such as Google or AWS use that code, optimize it for their use, make billions, and not even share the code back?

We know this has been happening for many years now, and we know this is causing a significant and negative impact on the open source ecosystem.

MySQL is just another Lego block in a larger scenario in which cloud companies are cannibalizing the work of others for their own economic return.

What can be done? I can only hope we will see a different behavior soon. Opening the code and investing in projects that will help communities such as MySQL to quickly recover the lost ground.

Let me add that while is perfectly normal in our economy to look for profit, at the end this is what capitalism is for, it is not normal, or for better say it is negative, to look for profit without keeping in mind you are burning out the resources. that gives you that profit.

This last is consumerism, using and abusing, without keeping in mind you MUST give the resources you use the time/energy/opportunity to renew and florish is stupid, short sight and suicidal.

Perfectly in line with our times isen't it?

So let say that many big names in the cloud, should seriously rethink what they are doing, not because they need to be nice. But because they will get better outcome and income helping the many opensource community instead as they are doing today, abusing them.

In the meantime, we must acknowledge that many customers/users are on 5.7 for a good reason and that until we are able to fix that, they may decide not to migrate forever or, if they must, to migrate to something else, such as Postgres.

Then Sakila will slowly and painfully die as usual for the greed of the human being, nothing new in a way, yes, but not good.

Happy MySQL to all.

In my previous article, Comparisons of Proxies for MySQL, I showed how MySQL Router was the lesser performing Proxy in the comparison. From that time to now, we had several MySQL releases and, of course, also some new MySQL Router ones.

Most importantly, we also had MySQL Router going back to being a level 7 proxy capable of redirecting traffic in case of R/W operations (see this).

All these bring me hope that we will also have some good improvements in what is a basic functionality in a router: routing.

So with these great expectations, I had to repeat the exact same tests I did in my previous tests, plus I tested for MySQL Router only the cost of encapsulating the select inside a transaction.

Just keep in mind that for all the tests, MySQL Router was configured to use the read/write split option.

The results

Given this is the continuation of the previous blog, all the explanations about the tests and commands used are in the first article. If you did not read that, do it now, or it will be difficult for you to follow what is explained later.

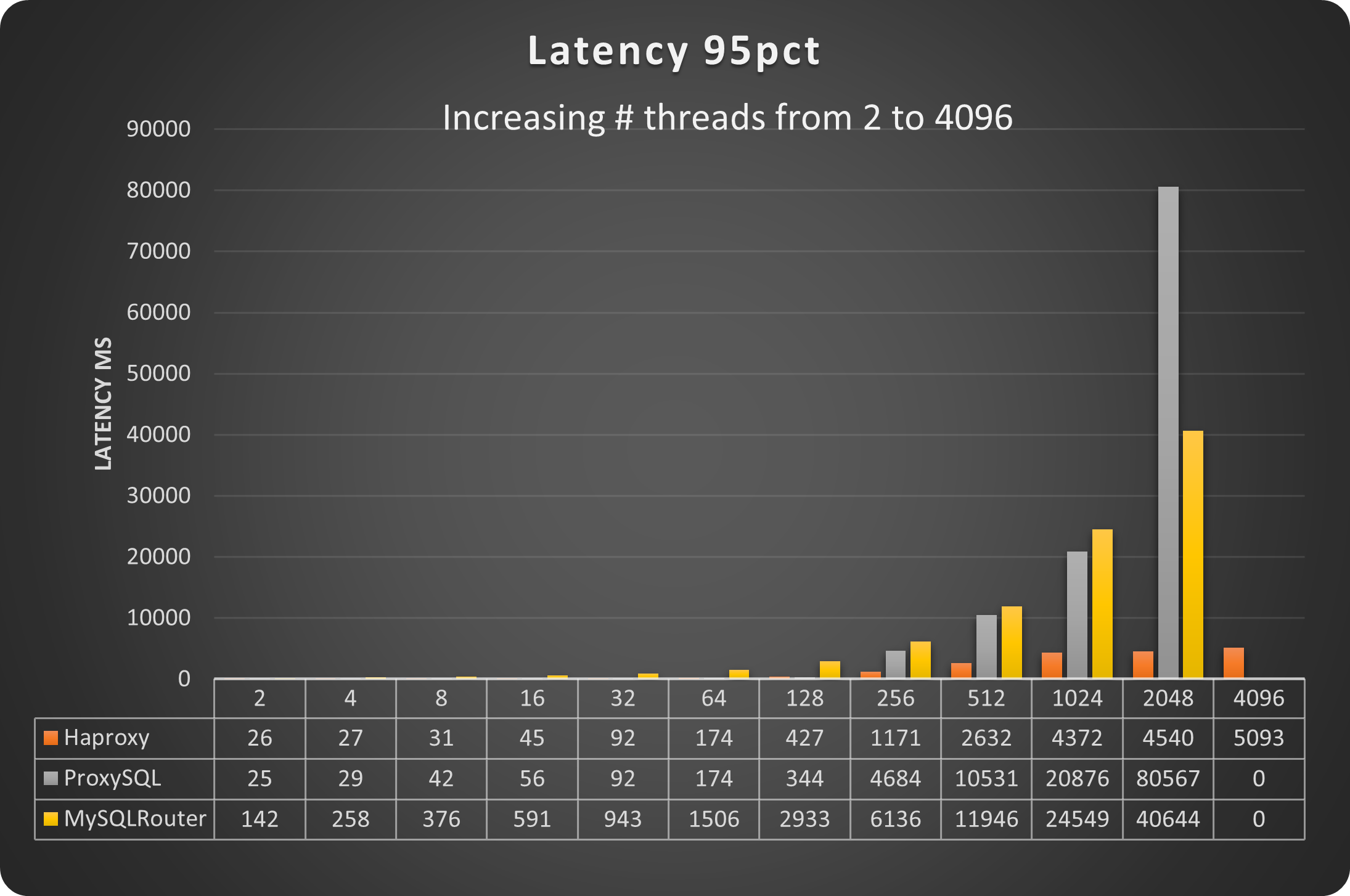

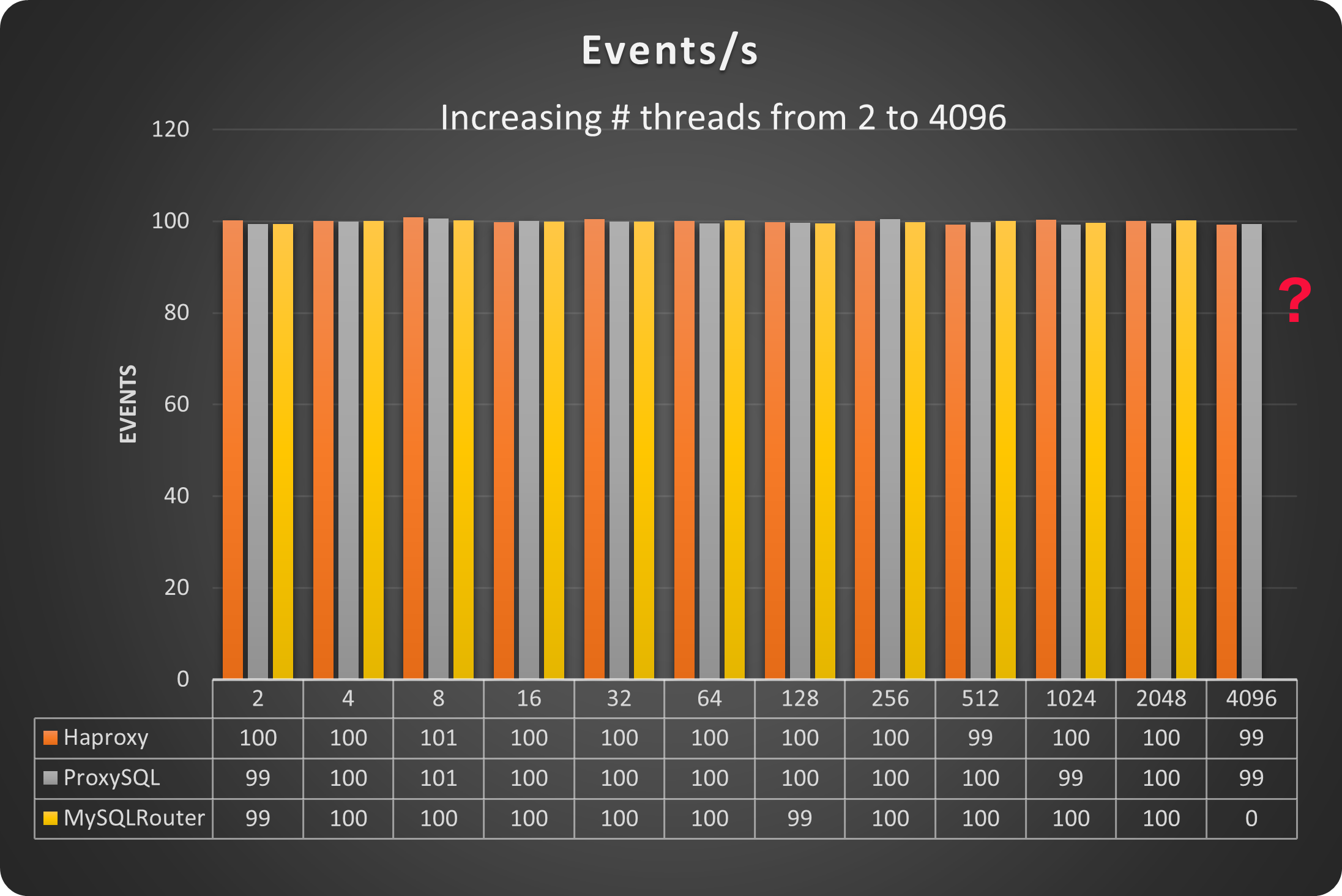

As indicated, I was looking to identify when the first proxy would reach a dimension that would not be manageable. The load is all in creating and serving the connections, while the number of operations is capped at 100.

As you can see, MySQL Router was reaching the saturation level and was unable to serve traffic at exactly the same time as the previous test.

Test two

When the going gets tough, the tough get going reprise ;)

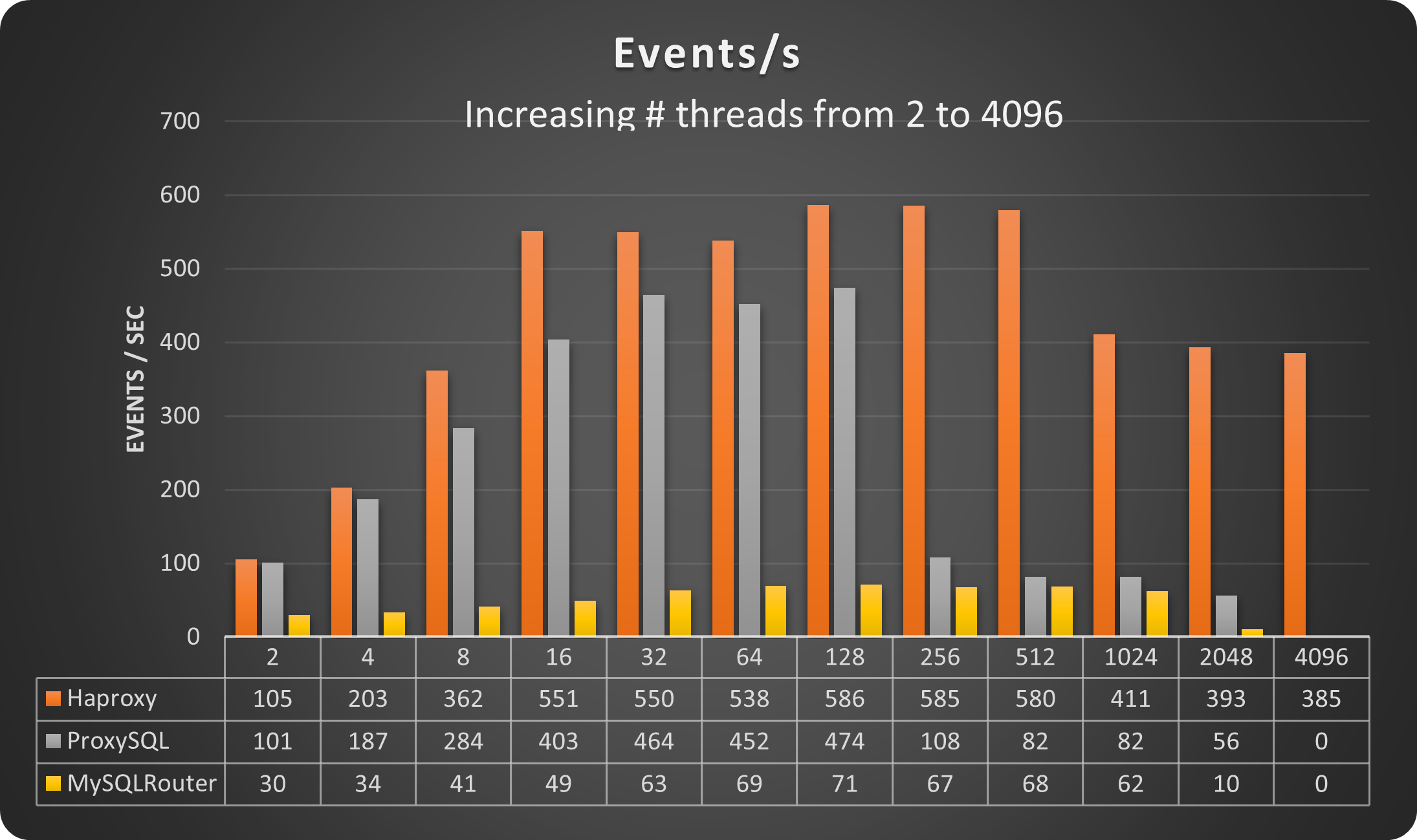

Let’s remove the –rate limitation and see what will happen. First, let us compare MySQL router versions only:

As we can see the MySQL Router version 8.2 is doing better up to 64 concurrent threads.

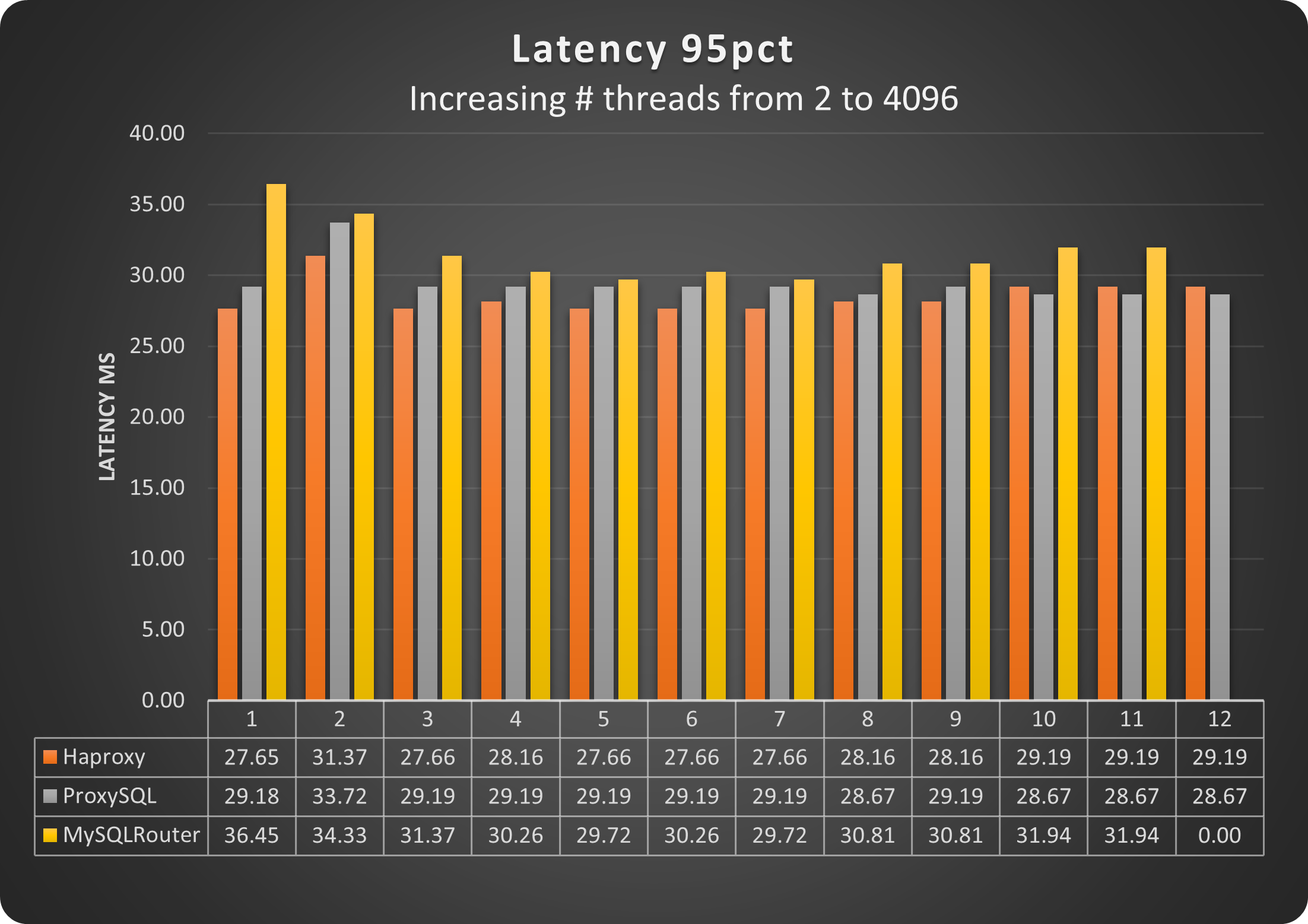

Latency follows the same trend in old and new cases, and we can see that the new version is acting better, up to 1024 threads.

Is this enough to cover the gap with the other proxies? Which, in the end, is what we would like to see.

Well, I would say not really; we see a bit of better performance with low concurrent threads, but still not scaling and definitely lower than the other two.

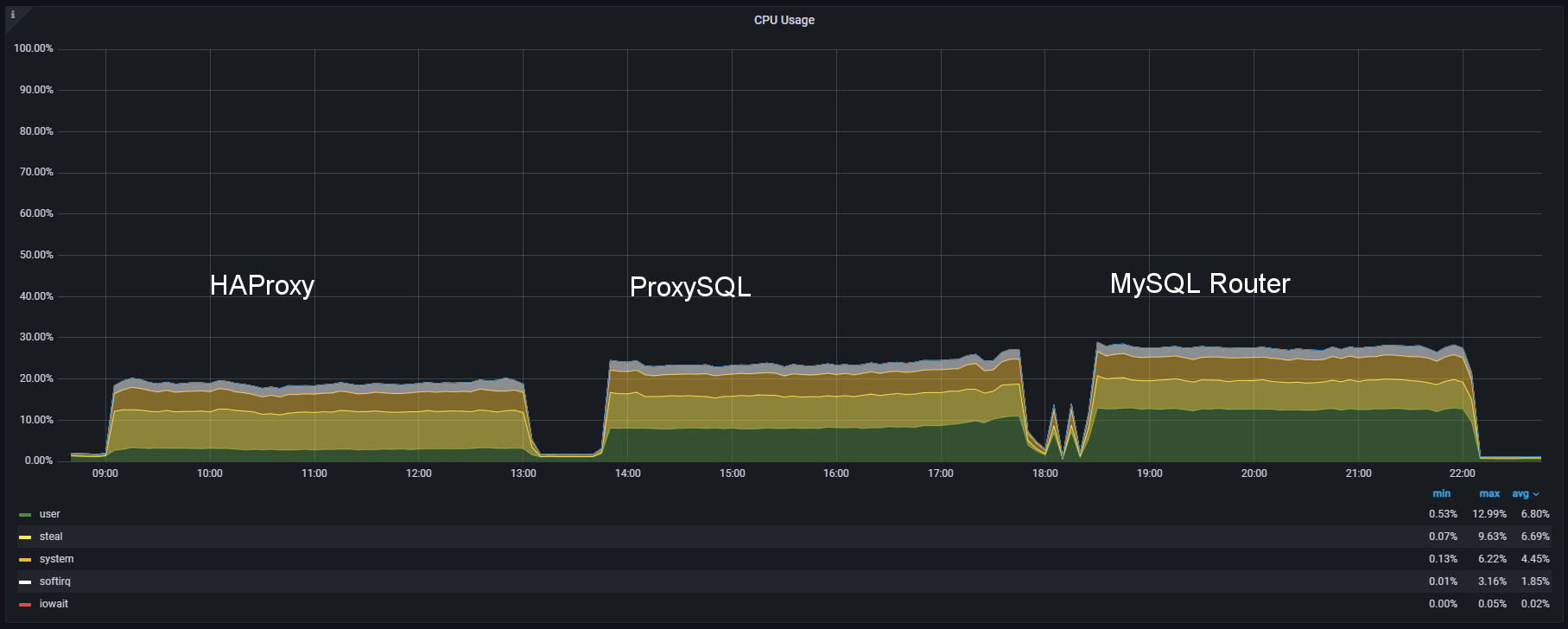

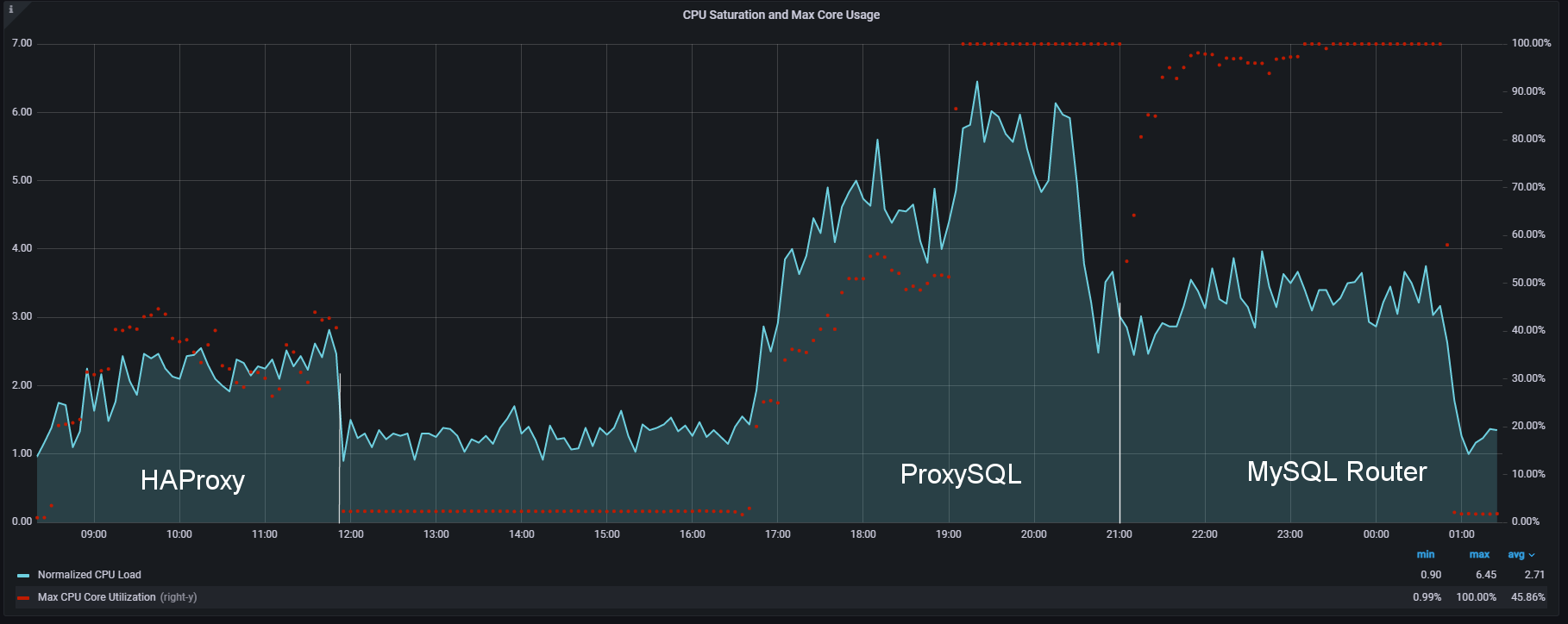

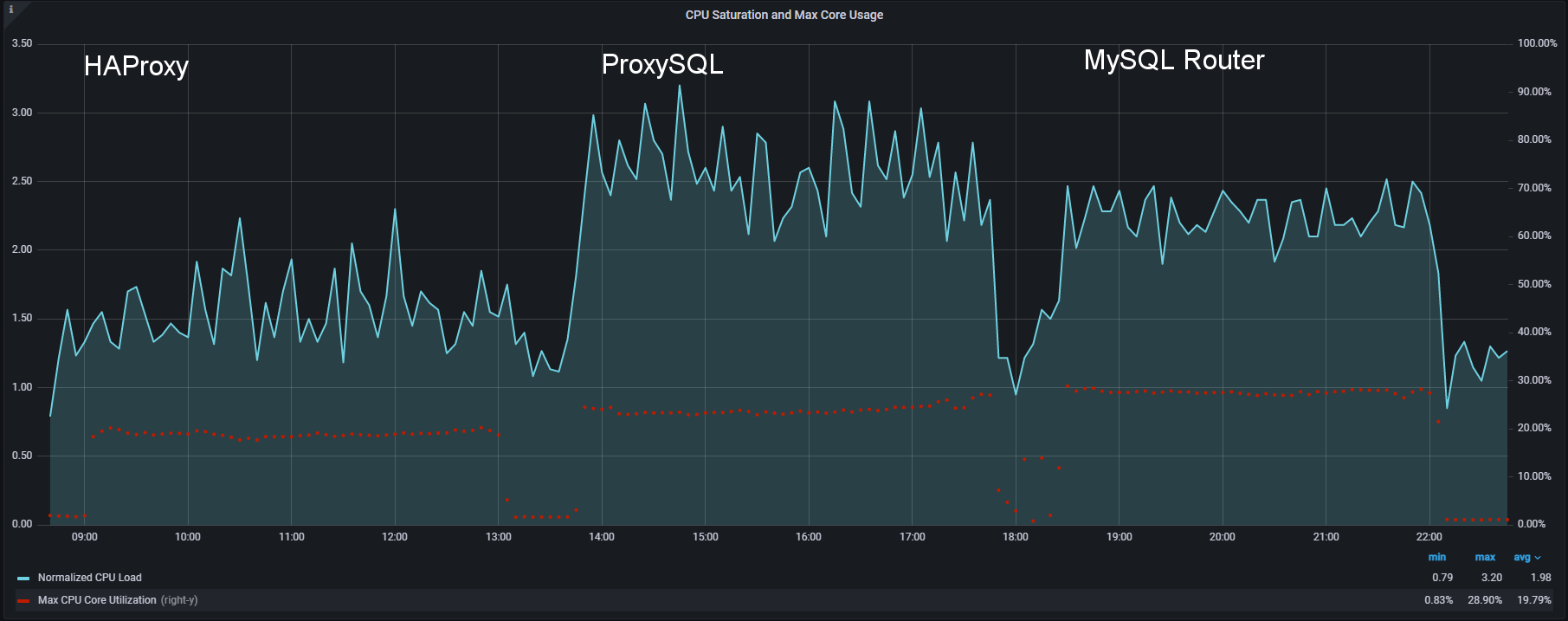

Now let us take a look at the CPU saturation:

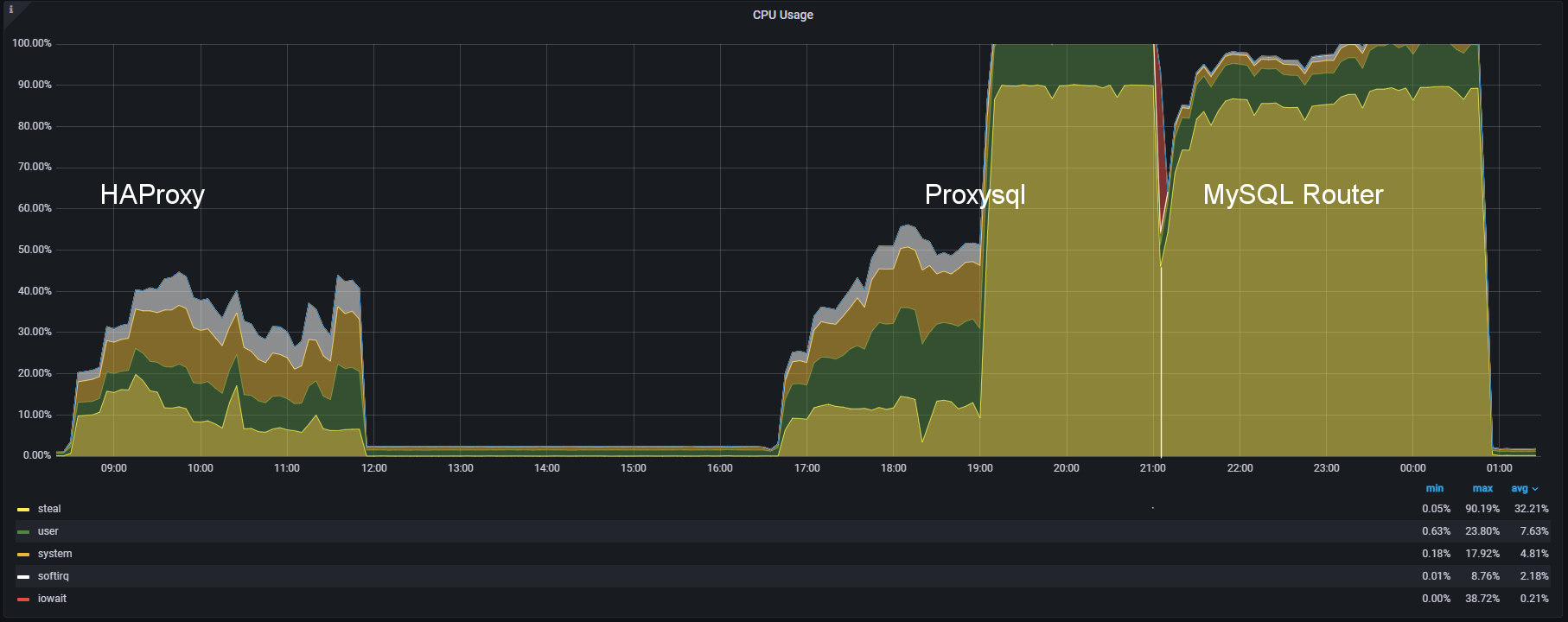

Here, we can see how MySQL Router hits the top as soon as the rate option is lifted and gets worse with the increase of the running threads.

Test three

This simple test was meant to identify the cost of a transaction, or better, what it will cost to include selects inside a transaction.

As we can clearly see, MySQL Router, when handling selects inside a transaction, will drop its performance drastically going back to version 8.0 performance.

Conclusions

To the initial question — Is MySQL Router 8.2 any better? — we can answer a small (very small) yes.

However, it is still far, far away from being competitive with ProxySQL (same proxy level) or with HAProxy. The fact it is not able to serve efficiently the requests also inside the lower set of concurrent threads, is disappointing.

Even more disappointing because MySQL Router is presented as a critical component in the MySQL InnoDB Cluster solution. How can we use it in the architectures if the product has such limitations?

I know that Oracle suggests to scale out, and I agree with them. When in need to scale with MySQL Router, the only option is to build a forest. However, we must keep in mind that each MySQL Router connects and queries the data nodes constantly and intensively. Given that it requires adding a forest of router nodes to scale, it is not without performance impact, given the increasing noise generated on the data nodes.

Anyhow also, if there is a theoretical option to scale, that is not a good reason to use a poor performing component.

I would prefer to use ProxySQL with Group Replication and add whatever script is needed in mysqlshell to manage it as Oracle is doing for the MySQL InnoDB cluster solution.

What also left me very unhappy is that MySQL InnoDB Cluster is one of the important components of the OCI offer for MySQL. Is Oracle using MySQL Router there as well? I assume so. Can we trust it? I am not feeling like I can.

Finally, what has been done for MySQL Router so far leads me to think that there is no real interest in making it the more robust and performing product that MySQL InnoDB Cluster deserves.

I hope I am wrong and that we will soon see a fully refactored version of MySQL Router. I really hope Oracle will prove me wrong.

Great MySQL to everyone.

Some fun is coming

While I was writing the internal guidelines on how to migrate from MariaDB to Percona Server, I had to export the users accounts in a portable way. This given MariaDB uses  some non standard syntax brings me to first test some external tools such as Fred https://github.com/lefred/mysqlshell-plugins/wiki/user#getusersgrants and our PT-SHOW-GRANTS tool.

Useless to say this had open a can worms, given first I had to fix/convert the specifics for MariaDB (not in the scope of this blog), then while testing I discover another nasty issue, that currently prevent us to easily export the new Passwords in MySQL 8 (and PS 8) when caching_sha2 is used.

So what is the problem I am referring to?

Well the point is that when you generate passwords with caching_sha2 (default in mysql 8) the password generated can (will) contain characters that are not portable, not even between mysql 8.

Let's see a practical example to understand.

If I use old mysql_native_password and I create a user such as:

create user dba@'192.168.1.%' identified with mysql_native_password by 'dba';

My authentication_string will be:

root@localhost) [(none)]>select user,host,authentication_string,plugin from mysql.user where user ='dba' order by 1,2;
+------+-------------+-------------------------------------------+-----------------------+
| user | host        | authentication_string                     | plugin                |
+------+-------------+-------------------------------------------+-----------------------+
| dba  | 192.168.1.% | *381AD08BBFA647B14C82AC1094A29AD4D7E4F51D | mysql_native_password |
+------+-------------+-------------------------------------------+-----------------------+

At this point if you want to export the user:

(root@localhost) [(none)]>show create user dba@'192.168.1.%'G
*************************** 1. row ***************************
CREATE USER for This email address is being protected from spambots. You need JavaScript enabled to view it..1.%: CREATE USER `dba`@`192.168.1.%` IDENTIFIED WITH 'mysql_native_password' AS '*381AD08BBFA647B14C82AC1094A29AD4D7E4F51D' REQUIRE NONE PASSWORD EXPIRE DEFAULT ACCOUNT UNLOCK PASSWORD HISTORY DEFAULT PASSWORD REUSE INTERVAL DEFAULT PASSWORD REQUIRE CURRENT DEFAULT
1 row in set (0.01 sec)

You just need to use the text after the semicolon and all will work fine. Remember that when you want to preserve the already converted password you need to use the IDENTIFIED … AS <PW> not the BY or you will re-convert the password ;).

 Anyhow .. this is simple and what we are all used to.

Now if you instead try to use caching_sha2 things will go differently:

root@localhost) [(none)]>create user dba@'192.168.4.%' identified with caching_sha2_password by 'dba';
Query OK, 0 rows affected (0.02 sec)

(root@localhost) [(none)]>select user,host,authentication_string,plugin from mysql.user where user ='dba' order by 1,2;
+------+-------------+------------------------------------------------------------------------+-----------------------+
| user | host        | authentication_string                                                  | plugin                |
+------+-------------+------------------------------------------------------------------------+-----------------------+
| dba  | 192.168.1.% | *381AD08BBFA647B14C82AC1094A29AD4D7E4F51D                              | mysql_native_password |
| dba  | 192.168.4.% | $A$005$@&%1H5iNQx|.l{N7T/GosA.Lp4EiO0bxLVQp8Zi0WY2nXLr8TkleQPYjaqVxI7 | caching_sha2_password |
+------+-------------+------------------------------------------------------------------------+-----------------------+
2 rows in set (0.00 sec)

Probably you will not see it here given that while converted on your screen the special characters will be replaced, but the password contains invalid characters.

If I try to extract the Create USER text I will get:

 (root@localhost) [(none)]>show create user dba@'192.168.4.%'G
*************************** 1. row ***************************
CREATE USER for This email address is being protected from spambots. You need JavaScript enabled to view it..4.%: CREATE USER `dba`@`192.168.4.%` IDENTIFIED WITH 'caching_sha2_password' AS '$A$005$@&%1H5iNQx|.l{N7T/GosA.Lp4EiO0bxLVQp8Zi0WY2nXLr8TkleQPYjaqVxI7' REQUIRE NONE PASSWORD EXPIRE DEFAULT ACCOUNT UNLOCK PASSWORD HISTORY DEFAULT PASSWORD REUSE INTERVAL DEFAULT PASSWORD REQUIRE CURRENT DEFAULT
1 row in set (0.00 sec)

However if I try to use this text to generate the user after I drop it:

(root@localhost) [(none)]>drop user dba@'192.168.4.%';
Query OK, 0 rows affected (0.02 sec)
(root@localhost) [(none)]>create user dba@'192.168.4.%' IDENTIFIED AS 'NQx|.l{N7T/GosA.Lp4EiO0bxLVQp8Zi0WY2nXLr8TkleQPYjaqVxI7';
ERROR 1064 (42000): You have an error in your SQL syntax; check the manual that corresponds to your MySQL server version for the right syntax to use near 'AS 'NQx|.l{N7T/GosA.Lp4EiO0bxLVQp8Zi0WY2nXLr8TkleQPYjaqVxI7'' at line 1

Don’t waste time, there is nothing wrong in the query, except the simple fact that you CANNOT use the text coming from the authentication_string when you have caching_sha2.

So? What should we do?

The answer is easy, we need to convert the password into binary and use/store that.

Let us try.

First create the user again:

(root@localhost) [(none)]>select user,host,authentication_string,plugin from mysql.user where user ='dba' order by 1,2;
+------+-------------+------------------------------------------------------------------------+-----------------------+
| user | host        | authentication_string                                                  | plugin                |
+------+-------------+------------------------------------------------------------------------+-----------------------+
| dba  | 192.168.1.% | *381AD08BBFA647B14C82AC1094A29AD4D7E4F51D                              | mysql_native_password |
| dba  | 192.168.4.% | $A$005$X>ztS}WfR"k~aH3Hs0hBbF3WmM2FXubKumr/CId182pl2Lj/gEtxLvV0 | caching_sha2_password |
+------+-------------+------------------------------------------------------------------------+-----------------------+
2 rows in set (0.00 sec)

(root@localhost) [(none)]>exit
Bye
[root@master3 ps80]# ./mysql-3307 -udba -pdba -h192.168.4.57 -P3307
...
(This email address is being protected from spambots. You need JavaScript enabled to view it.) [(none)]>

OK as you can see I create the user and can connect, but as we know the PW is not portable.

Let us convert it and create the user:

(root@localhost) [(none)]>select user,host,convert(authentication_string using binary),plugin from mysql.user where user ='dba' and host='192.168.4.%' order by 1,2;
+------+-------------+------------------------------------------------------------------------------------------------------------------------------------------------+-----------------------+
| user | host        | convert(authentication_string using binary)                                                                                                    | plugin                |
+------+-------------+------------------------------------------------------------------------------------------------------------------------------------------------+-----------------------+
| dba  | 192.168.4.% | 0x2441243030352458193E107A74537D0157055C66527F226B7E5C6148334873306842624633576D4D32465875624B756D722F434964313832706C324C6A2F674574784C765630 | caching_sha2_password |
+------+-------------+------------------------------------------------------------------------------------------------------------------------------------------------+-----------------------+

So the password is:

0x2441243030352458193E107A74537D0157055C66527F226B7E5C6148334873306842624633576D4D32465875624B756D722F434964313832706C324C6A2F674574784C7656

Let us use it:

(root@localhost) [(none)]>drop user dba@'192.168.4.%';
Query OK, 0 rows affected (0.02 sec)

(root@localhost) [(none)]>create user dba@'192.168.4.%' IDENTIFIED with 'caching_sha2_password' AS 0x2441243030352458193E107A74537D0157055C66527F226B7E5C6148334873306842624633576D4D32465875624B756D722F434964313832706C324C6A2F674574784C765630;
Query OK, 0 rows affected (0.03 sec)

Let us check the user now:

(root@localhost) [(none)]>select user,host, authentication_string,plugin from mysql.user where user ='dba' and host= '192.168.4.%' order by 1,2;
+------+-------------+------------------------------------------------------------------------+-----------------------+
| user | host        | authentication_string                                                  | plugin                |
+------+-------------+------------------------------------------------------------------------+-----------------------+
| dba  | 192.168.4.% | $A$005$X>ztS}WfR"k~aH3Hs0hBbF3WmM2FXubKumr/CId182pl2Lj/gEtxLvV0 | caching_sha2_password |
+------+-------------+------------------------------------------------------------------------+-----------------------+
1 row in set (0.00 sec)

[root@master3 ps80]# ./mysql-3307 -udba -pdba -h192.168.4.57 -P3307

(This email address is being protected from spambots. You need JavaScript enabled to view it.) [(none)]>select current_user();
+-----------------+
| current_user()  |
+-----------------+
| This email address is being protected from spambots. You need JavaScript enabled to view it..4.% |
+-----------------+
1 row in set (0.00 sec)

As you can see the user has been created correctly and password is again in encrypted format.

In short what you need to do when in need to export users from MySQL/PS 8 is:

1. Read the user information
2. Convert Password to hex format when plugin is caching_sha2
3. Push the AS <password> converted to a file or any other way you were used to

Another possible solution is to use at session level the parameter print_identified_with_as_hex. If set causes SHOW CREATE USER to display such hash values as hexadecimal strings rather than as regular string literals. Hash values that do not contain unprintable characters still display as regular string literals, even with this variable enabled.

This at the end is exactly what Fred and I have done for our tools:

See:

• Fred: https://github.com/lefred/mysqlshell-plugins/commit/aa5c6bbe9b9aa689bf7266f5a19a35d0091f6568
• Pt-show-grants: https://github.com/percona/percona-toolkit/blob/4a812d4a79c0973bf176105b0d138ad0a2a46b2f/bin/pt-show-grants#L2058

Conclusions

MySQL 8 and Percona server comes with a more secure hashing mechanism caching_sha2_password which is also the default. However if you have the need to migrate users and you use your own tools to export and import the passwords, you must update them as indicated. Or use the Percona Toolkit tools that we keep up to date for you.

Have fun with MySQL!!

Historically MySQL is great in horizontal READ scale. The scaling in that case is offered by the different number of Replica nodes, no matter if using standard asynchronous replication or synchronous replication.

However those solutions do not offer the same level of scaling for writes operation.

Why? Because the solutions still rely on writing in one single node that works as Primary. Also in case of multi-Primary the writes will be distributed by transaction. In both cases, when using virtually-synchronous replication, the process will require certification from each node and local (by node) write, as such the number of writes are NOT distributed across multiple nodes but duplicated.

The main reason behind this is that MySQL is a relational database system (RDBMS), and any data that is going to be written in it, must respect the RDBMS rules (https://en.wikipedia.org/wiki/Relational_database). In short any data that is written must be consistent with the data present. To achieve that the data needs to be checked with the existing through defined relations and constraints. This action is something that can affect very large datasets and be very expensive. Think about updating a table with millions of rows that refer to another table with another million rows.

An image may help:

Every time I will insert an order, I must be sure that all the related elements are in place and consistent.

This operation is quite expensive but our database is able to run it in a few milliseconds or less, thanks to several optimizations that allow the node to execute most of them in memory, with none or little access to mass storage.

The key factor is that the whole data structure resides in the same location (node) facilitating the operations.

Once we have understood that, it will also become clear why we cannot have relational data split in multiple nodes and have to distribute writes by table. If I have a node that manages only the items, another the orders, another the payments, I will need to have my solution able to deal with distributed transactions, each of which needs to certify and verify other nodes data.

This level of distribution will seriously affect the efficiency of the operation which will increase the response time significantly. This is it, nothing is impossible however the performances will be so impacted that each operation may take seconds instead milliseconds or fraction of it, unless lifting some of the rules breaking the relational model.

MySQL as well as other RDBMS are designed to work respecting the model and cannot scale in any way by fragmenting and distributing a schema, so what can be done to scale?

The alternative is to split a consistent set of data into fragments. What is a consistent set of data? It all depends on the kind of information we are dealing with. Keeping in mind the example above where we have a shop online serving multiple customers, we need to identify which is the most effective way to split the data.

For instance if we try to split the data by Product Type (Books, CD/DVD, etc) we will have a huge duplication of data related to customers/orders/shipments and so on, all this data is also quite dynamic given I will have customers constantly ordering things.

Why duplicate the data? Because if I do not duplicate that data I will not know if a customer had already bought or not that specific item, or I will have to ask again about the shipment address and so on. Which means also that any time a customer buys something or puts something in the wish list I have to reconcile the data in all my nodes/clusters.

On the other hand if I choose to split my data by country of customer’s residence the only data I will have to duplicate and keep in sync is the one related to the products, of which the most dynamic one will be the number of items in stock. This of course unless I can organize my products by country as well, which is a bit unusual nowadays, but not impossible.

Another possible case is if I am a health organization and I manage several hospitals. As for the example above, it will be easier to split my data by hospital given most of the data related to patients is bound to the hospital itself as well as treatments and any other element related to hospital management. While it will make no sense to split by patient's country of residence.

This technique of splitting the data into smaller pieces is called sharding and at the moment is the only way we have to scale RDBM horizontally.

In the MySQL open source ecosystem we have only two consolidated ways to perform sharding, Vitess and ProxySQL. The first one is a complete solution that takes ownership of your database and manages almost any aspect of its operations in a sharded environment, this includes a lot of specific features for DBA to deal with daily operations like table modifications, backup and more.

While this may look great it also comes with some string attached, including the complexity and proprietary environment. That makes Vitess a good fit for “complex” sharding scenarios where other solutions may not be enough.

ProxySQL does not have a sharding mechanism “per se” but given the way it works and the features it has, allow us to build simple sharding solutions.

It is important to note that most of the DBA operations will still be on DBA to be executed with incremented complexity given the sharding environment.

There is a third option which is application aware sharding.

This solution sees the application be aware of the need to split the data in smaller fragments and internally point the data to different “connectors” who are connected to multiple data sources.

In this case the application is aware of a customer country and will redirect all the operations related to him to the datasource responsible for the specific fragment.

Normally this solution requires a full code re-design and could be quite difficult to achieve when it is injected after the initial code architecture definition.

On the other hand, if done at design it is probably the best solution, because it will allow the application to define the sharding rules and can also optimize the different data sources using different technologies for different uses.

One example could be the use of a RDBMS for most of the Online transaction processing (OLTP) data shared by country, and having the products as distributed memory cache with a different technology. At the same time all the data related to orders, payments and customer history can be consolidated in a data warehouse used to generate reporting.

As said the last one is probably the most powerful, scalable and difficult to design and unfortunately it represents probably less than the 5% of the solution currently deployed.

As well as very few cases are in the need to have a full system/solution to provide scalability with sharding.

By experience, most of the needs for horizontal scaling fell in the simple scenario, where there is the need to achieve sharding and data separation, very often with sharding-nothing architecture. In shared-nothing, each shard can live in a totally separate logical schema instance / physical database server / data center / continent. There is no ongoing need to retain shared access (from between shards) to the other unpartitioned tables in other shards.

The POC

Why this POC?

In the years I have faced a lot of customers that were talking about scaling their database solution and looking at very complex sharding as Vitess as the first and only way to go.

This without even considering if their needs were driving them there for real.

In my experience, and talking with several colleagues, I am not alone, when analyzing the real needs and after discussing with all the parties impacted, only a very small percentage of customers were in the real need of complex solutions. Most of the others were just trying to avoid a project that will implement simple shared-nothing solutions. Why? Because apparently it is simpler to migrate data to a platform that does all for you, than accept a bit of additional work and challenge at the beginning but keep a simple approach. Also going for the last shining things always has its magic.

On top of that, with the rise of Kubernetes and Mysql Operators, a lot of confusion starts to circulate, most of which generate by the total lack of understanding that a Database and a relational database are two separate things. That lack of understanding the difference and the real problems attached to a RDBMS had brought some to talk about horizontal scaling for databases, with a concerning superficiality and without clarifying if they were talking about RDBMS or not. As such some clarification is long due as well as putting back the KISS principle as the main focus.

Given that, I thought that refreshing how ProxySQL could help in building a simple sharding solution may help to clarify the issues, reset the expectations and show how we can do things in a simpler way.  (See my old post https://www.percona.com/blog/mysql-sharding-with-proxysql/).

To do so I had built a simple POC that illustrates how you can use Percona Operator for MySQL (POM) and ProxySQL to build a sharded environment with a good level of automation for some standard operations like backup/restore software upgrade and resource scaling.

Why Proxysql?

In the following example we mimic a case where we need a simple sharding solution, which means we just need to redirect the data to different data containers, keeping the database maintenance operations on us. In this common case we do not need to implement a full sharding system such as Vitess.

As illustrated above ProxySQL allows us to set up a common entry point for the application and then redirect the traffic on the base of identified sharding keys. It will also allow us to redirect read/write traffic to the primary and read only traffic to all secondaries.

The other interesting thing is that we can have ProxySQL as part of the application pod, or as an independent service. Best practices indicate that having ProxySQL closer to the application will be more efficient especially if we decide to activate the caching feature.

Why POM

Percona Operator for MySQL comes with three main solutions, Percona Operator for PXC, Percona Operator for MySQL Group Replication and Percona Operator for Percona server. The first two are based on virtually-synchronous replication, and allow the cluster to keep the data state consistent across all pods, which guarantees that the service will always offer consistent data.  In K8s context we can see POM as a single service with native horizontal scalability for reads, while for writes we will adopt the mentioned sharding approach.

The other important aspects of using a POM based solution is the automation it comes with. Deploying POM you will be able to set automation for backups, software updates, monitoring (using PMM) and last but not least the possibility to scale UP or DOWN just changing the needed resources.

The elements used

In our POC I will use a modified version of sysbench (https://github.com/Tusamarco/sysbench), that has an additional field continent and I will use that as a sharding key. At the moment and for the purpose of this simple POC I will only have 2 Shards.

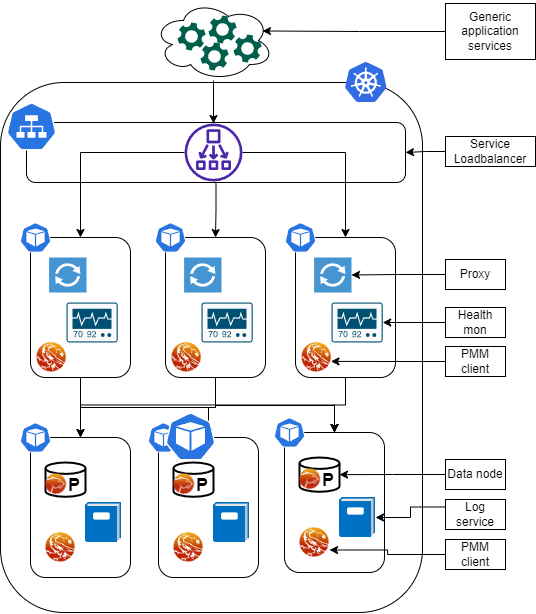

As the diagram above illustrates here we have a simple deployment but good enough to illustrate the sharding approach.

We have:

• The application(s) node(s), it is really up to you if you want to test with one application node or more, nothing will change, as well as for the ProxySQL nodes, just keep in mind that if you use more proxysql nodes is better to activate the internal cluster support or use consul to synchronize them.
• Shard 1 is based on POM with PXC, it has:

• Load balancer for service entry point
  • Entry point for r/w
  • Entry point for read only
• 3 Pods for Haproxy
  • Haproxy container
  • Pmm agent container
• 3 Pods with data nodes (PXC)
  • PXC cluster node container
  • Log streaming
  • Pmm container
• Backup/restore service

• Shard 2 is based on POM for Percona server and Group Replication (technical preview)
  • Load balancer for service entry point
    • Entry point for r/w
    • Entry point for read only
  • 3 Pods for MySQL Router (testing)
    • MySQL router container
  • 3 Pods with data nodes (PS with GR)
    • PS -GR cluster node container
    • Log streaming
    • Pmm container
  • Backup/restore on scheduler

Now you may have noticed that the representation of the nodes are different in size, this is not a mistake while drawing. It indicates that I have allocated more resources (CPU and Memory) to shard1 than shard2. Why? Because I can and I am simulating a situation where a shard2 gets less traffic, at least temporarily, as such I do not want to give it the same resources as shard1. I will eventually increase them if I see the needs.

The settings

Data layer

Let us start with the easy one, the Data layer configuration. Configuring correctly the environment is the key, and to do so I am using a tool that I wrote specifically to calculate the needed configuration in K8s POM environment, you can find it here (https://github.com/Tusamarco/mysqloperatorcalculator).

Once you have compiled it and run you can simply ask what “dimensions” are supported, or you can define a custom level of resources, but you will still need to indicate the level of expected load. In any case please refer to the README in the repository which has all the instructions.

The full cr.yaml for PXC shard1 is here, while the one for PS-GR here.

For Shard 1: I asked for resources to cover traffic of type 2 (Light OLTP), configuration type 5 (2XLarge) 1000 connections.

For Shard2: I ask for resources to cover traffic of type 2 (Light OLTP), configuration type 2 (Small), 100 connections.

Once you have the CRs defined you can follow the official guidelines to set the environment up ( PXC (https://docs.percona.com/percona-operator-for-mysql/pxc/index.html), PS (https://docs.percona.com/percona-operator-for-mysql/ps/index.html)

It is time now to see the Proxysql settings.

ProxySQL and Sharding rules

As mentioned before we are going to test the load sharding by continent, and as also mentioned before we know that ProxySQL will not provide additional help to automatically manage the sharded environment.

Given that one way to do it is to create a DBA account per shard, or to inject shard information in the commands while executing.
I will use the less comfortable one just to prove if it works, the different DBA accounts.

We will have 2 shards, the sharding key is the continent field, and the continents will be grouped as follows:

• Shard 1:
  • Asia
  • Africa
  • Antarctica
  • Europe
  • North America
• Shard 2:
  • Oceania
  • South America

The DBAs users:

• dba_g1
• dba_g2

The application user:

• app_test

The host groups will be:

• Shard 1
  • 100 Read and Write
  • 101 Read only
• Shard 2
  • 200 Read and Write
  • 201 Read only

Once that is defined, we need to identify which query rules will serve us and how.

What we want is to redirect all the incoming queries for:

• Asia, Africa, Antarctica, Europe and North America to shard 1.
• Oceania and South America to shard 2
• Split the queries in R/W and Read only
• Prevent the execution of any query that do not have a shard key
• Backup data at regular interval and store it in a safe place

Given the above we first define the rules for the DBAs accounts:

We set the Hostgroup for each DBA and then if the query matches the sharding rule we redirect it to the proper sharding, otherwise the HG will remain as set.

This allows us to execute queries like CREATE/DROP table on our shard without problem, but will allow us to send data where needed.

For instance the one below is the output of the queries that sysbench will run.

Prepare:

INSERT INTO windmills_test1 /*  continent=Asia */ (uuid,millid,kwatts_s,date,location,continent,active,strrecordtype) VALUES(UUID(), 79, 3949999,NOW(),'mr18n2L9K88eMlGn7CcctT9RwKSB1FebW397','Asia',0,'quq')

In this case I have the application simply injecting a comment in the INSERT SQL declaring the shard key, given I am using the account dba_g1 to create/prepare the schemas, rules  32/32 will be used and give I have sett apply=1, ProxySQL will exit the query rules parsing and send the command to relevant hostgroup.

Run:

SELECT id, millid, date,continent,active,kwatts_s FROM windmills_test1 WHERE id BETWEEN ? AND ? AND continent='South America'

SELECT SUM(kwatts_s) FROM windmills_test1 WHERE id BETWEEN ? AND ?  and active=1  AND continent='Asia'
SELECT id, millid, date,continent,active,kwatts_s  FROM windmills_test1 WHERE id BETWEEN ? AND ?  AND continent='Oceania' ORDER BY millid

SELECT DISTINCT millid,continent,active,kwatts_s   FROM windmills_test1 WHERE id BETWEEN ? AND ? AND active =1  AND continent='Oceania' ORDER BY millid

UPDATE windmills_test1 SET active=? WHERE id=?  AND continent='Asia'
UPDATE windmills_test1 SET strrecordtype=? WHERE id=?  AND continent='North America'

DELETE FROM windmills_test1 WHERE id=?  AND continent='Antarctica'

INSERT INTO windmills_test1 /* continent=Antarctica */ (id,uuid,millid,kwatts_s,date,location,continent,active,strrecordtype) VALUES (?, UUID(), ?, ?, NOW(), ?, ?, ?,?) ON DUPLICATE KEY UPDATE kwatts_s=kwatts_s+1

The above are executed during the tests.

In all of them the sharding key is present, either in the WHERE clause OR as comment.

Of course if I execute one of them without the sharding key,  the firewall rule will stop the query execution, ie:

mysql> SELECT id, millid, date,continent,active,kwatts_s FROM windmills_test1 WHERE id BETWEEN ? AND ?;
ERROR 1148 (42000): It is impossible to redirect this command to a defined shard. Please be sure you Have the Continent definition in your query, or that you use a defined DBA account (dba_g{1/2})

Check here for full command list

Setting up the dataset

Once we have the rules set it is time to setup the schemas and the data using sysbench (https://github.com/Tusamarco/sysbench), remember to use windmills_sharding tests.

The first operation is to build the schema on SHARD2 without filling it with data. This is a DBA action as such we will execute it using the dba_g2 account:

sysbench ./src/lua/windmills_sharding/oltp_read.lua  --mysql-host=10.0.1.96  --mysql-port=6033 --mysql-user=dba_g2 --mysql-password=xxx --mysql-db=windmills_large --mysql_storage_engine=innodb --db-driver=mysql --tables=4 --table_size=0 --table_name=windmills --mysql-ignore-errors=all --threads=1  prepare

Setting table_size and pointing to the ProxySQL IP/port will do, and I will have:

mysql> select current_user(), @@hostname;
+----------------+-------------------+
| current_user() | @@hostname        |
+----------------+-------------------+
| dba_g2@%       | ps-mysql1-mysql-0 |
+----------------+-------------------+
1 row in set (0.01 sec)

mysql> use windmills_large;
Database changed
mysql> show tables;
+---------------------------+
| Tables_in_windmills_large |
+---------------------------+
| windmills1                |
| windmills2                |
| windmills3                |
| windmills4                |
+---------------------------+
4 rows in set (0.01 sec)

mysql> select count(*) from windmills1;
+----------+
| count(*) |
+----------+
|        0 |
+----------+
1 row in set (0.09 sec)

All set but empty.

Now let us do the same but with the other DBA user:

sysbench ./src/lua/windmills_sharding/oltp_read.lua  --mysql-host=10.0.1.96  --mysql-port=6033 --mysql-user=dba_g1 --mysql-password=xxx --mysql-db=windmills_large --mysql_storage_engine=innodb --db-driver=mysql --tables=4 --table_size=400 --table_name=windmills --mysql-ignore-errors=all --threads=1  prepare

If I do now the select above with user dba_g2:

mysql> select current_user(), @@hostname;select count(*) from windmills1;
+----------------+-------------------+
| current_user() | @@hostname        |
+----------------+-------------------+
| dba_g2@%       | ps-mysql1-mysql-0 |
+----------------+-------------------+
1 row in set (0.00 sec)

+----------+
| count(*) |
+----------+
|      113 |
+----------+
1 row in set (0.00 sec)

While If I reconnect and use dba_g1:

mysql> select current_user(), @@hostname;select count(*) from windmills1;
+----------------+--------------------+
| current_user() | @@hostname         |
+----------------+--------------------+
| dba_g1@%       | mt-cluster-1-pxc-0 |
+----------------+--------------------+
1 row in set (0.00 sec)

+----------+
| count(*) |
+----------+
|      287 |
+----------+
1 row in set (0.01 sec)

I can also check on ProxySQL to see which rules were utilized:

select active,hits,destination_hostgroup, mysql_query_rules.rule_id, match_digest, match_pattern, replace_pattern, cache_ttl, apply,flagIn,flagOUT FROM mysql_query_rules NATURAL JOIN stats.stats_mysql_query_rules ORDER BY mysql_query_rules.rule_id;

+------+-----------------------+---------+---------------------+----------------------------------------------------------------------------+-------+--------+---------+
| hits | destination_hostgroup | rule_id | match_digest        | match_pattern                                                              | apply | flagIN | flagOUT |
+------+-----------------------+---------+---------------------+----------------------------------------------------------------------------+-------+--------+---------+
| 3261 | 100                   | 20      | NULL                | NULL                                                                       | 0     | 0      | 500     |
| 51   | 200                   | 21      | NULL                | NULL                                                                       | 0     | 0      | 600     |
| 2320 | 100                   | 31      | NULL                | scontinents*(=|like)s*'*(Asia|Africa|Antarctica|Europe|North America)'* | 1     | 500    | 0       |
| 880  | 200                   | 32      | NULL                | scontinents*(=|like)s*'*(Oceania|South America)'*                       | 1     | 500    | 0       |
| 0    | 100                   | 34      | NULL                | scontinents*(=|like)s*'*(Asia|Africa|Antarctica|Europe|North America)'* | 1     | 600    | 0       |
| 0    | 200                   | 35      | NULL                | scontinents*(=|like)s*'*(Oceania|South America)'*                       | 1     | 600    | 0       |
| 2    | 100                   | 51      | NULL                | scontinents*(=|like)s*'*(Asia|Africa|Antarctica|Europe|North America)'* | 0     | 0      | 1001    |
| 0    | 200                   | 54      | NULL                | scontinents*(=|like)s*'*(Oceania|South America)'*                       | 0     | 0      | 1002    |
| 0    | 100                   | 60      | NULL                | NULL                                                                       | 0     | 50     | 1001    |
| 0    | 200                   | 62      | NULL                | NULL                                                                       | 0     | 60     | 1002    |
| 7    | NULL                  | 2000    | .                   | NULL                                                                       | 1     | 0      | NULL    |
| 0    | 100                   | 2040    | ^SELECT.*FOR UPDATE | NULL                                                                       | 1     | 1001   | NULL    |
| 2    | 101                   | 2041    | ^SELECT.*$          | NULL                                                                       | 1     | 1001   | NULL    |
| 0    | 200                   | 2050    | ^SELECT.*FOR UPDATE | NULL                                                                       | 1     | 1002   | NULL    |
| 0    | 201                   | 2051    | ^SELECT.*$          | NULL                                                                       | 1     | 1002   | NULL    |
+------+-----------------------+---------+---------------------+----------------------------------------------------------------------------+-------+--------+---------+

Running the application

Now that the data load test was successful, let us do the real load following the indication as above but use 80 Tables and just a bit more records like 20000, nothing huge.

Once the data is loaded we will have the 2 shards with different numbers of records, if all went well the shard2 should have ¼ of the total and shard1 ¾ .

When load is over I have as expected:

mysql> select current_user(), @@hostname;select count(*) as shard1 from windmills_large.windmills80;select /* continent=shard2 */ count(*) as shard2 from windmills_large.windmills80;
+----------------+--------------------+
| current_user() | @@hostname         |
+----------------+--------------------+
| dba_g1@%       | mt-cluster-1-pxc-0 |
+----------------+--------------------+
1 row in set (0.00 sec)

+--------+
| shard1 |
+--------+
|  14272 | ← Table windmills80 in SHARD1
+--------+
+--------+
| shard2 |
+--------+
|   5728 | ← Table windmills80 in SHARD2
+--------+

As you may have already noticed, I used a trick to query the other shard using the dba_g1 user, I just passed in the query  the shard2 definition as a comment. That is all we need.

Let us execute the run command for writes in sysbench and see what happens.

The first thing we can notice while doing writes is the query distribution:

+--------+-----------+----------------------------------------------------------------------------+----------+--------+----------+----------+--------+---------+-------------+---------+
| weight | hostgroup | srv_host                                                                   | srv_port | status | ConnUsed | ConnFree | ConnOK | ConnERR | MaxConnUsed | Queries |
+--------+-----------+----------------------------------------------------------------------------+----------+--------+----------+----------+--------+---------+-------------+---------+
| 10000  | 100       | ac966f7d46c04400fb92a3603f0e2634-193113472.eu-central-1.elb.amazonaws.com  | 3306     | ONLINE | 24	     | 0        | 138    | 66      | 25          | 1309353 |
| 100    | 101       | a5c8836b7c05b41928ca84f2beb48aee-1936458168.eu-central-1.elb.amazonaws.com | 3306     | ONLINE | 0	     | 0        | 0      | 0       | 0           |       0 |
| 10000  | 200       | a039ab70e9f564f5e879d5e1374d9ffa-1769267689.eu-central-1.elb.amazonaws.com | 3306     | ONLINE | 24	     | 1        | 129    | 66      | 25          |  516407 |
| 10000  | 201       | a039ab70e9f564f5e879d5e1374d9ffa-1769267689.eu-central-1.elb.amazonaws.com | 6447     | ONLINE | 0	     | 0        | 0      | 0       | 0           |       0 |
+--------+-----------+----------------------------------------------------------------------------+----------+--------+----------+----------+--------+---------+-------------+---------+

Where we can notice that the load in connection is evenly distributed, while the load is mainly going to shard1 as we expected given we have an unbalanced sharding by design.

At MySQL level we had:

Questions

Com Type

The final point is, what is the gain using this sharding approach?

Well we still need to consider the fact we are testing on a very small set of data, however if we can already identify some benefit here, that will be an interesting result.

Let see the write operations with 24 and 64 threads:

We get a gain of ~33% just using sharding, while for latency we do not have a cost on the contrary also with small load increase we can see how the sharded solution performs better. Of course we are still talking about low number of rows and running threads but gain is there.

Backup

The backup and restore operation when using POM is completely managed by the operator (see instructions in the POM documentation https://docs.percona.com/percona-operator-for-mysql/pxc/backups.html and https://docs.percona.com/percona-operator-for-mysql/ps/backups.html ).

The interesting part is that we can have multiple kind of backup solution, like:

• On demand
• Scheduled
• Full Point in time recovery with log streaming

Automation will allow us to set schedule as simple as this:

    schedule:
     - name: "sat-night-backup"
        schedule: "0 0 * * 6"
        keep: 3
        storageName: s3-eu-west
      - name: "daily-backup"
        schedule: "0 3 * * *"
        keep: 7
        storageName: s3-eu-west

Or if you want to run the on demand:

kubectl apply -f backup.yaml

Where the backup.yaml file has very simple informations:

apiVersion: ps.percona.com/v1alpha1
kind: PerconaServerMySQLBackup
metadata:
  name: ps-gr-sharding-test-2nd-of-may
#  finalizers:
#    - delete-backup
spec:
  clusterName: ps-mysql1
  storageName: s3-ondemand

Using both methods we will be able to soon have a good set of backups like:

POM (PXC)

cron-mt-cluster-1-s3-eu-west-20234293010-3vsve   mt-cluster-1   s3-eu-west    s3://mt-bucket-backup-tl/scheduled/mt-cluster-1-2023-04-29-03:00:10-full   Succeeded   3d9h        3d9h
cron-mt-cluster-1-s3-eu-west-20234303010-3vsve   mt-cluster-1   s3-eu-west    s3://mt-bucket-backup-tl/scheduled/mt-cluster-1-2023-04-30-03:00:10-full   Succeeded   2d9h        2d9h
cron-mt-cluster-1-s3-eu-west-2023513010-3vsve    mt-cluster-1   s3-eu-west    s3://mt-bucket-backup-tl/scheduled/mt-cluster-1-2023-05-01-03:00:10-full   Succeeded   33h         33h
cron-mt-cluster-1-s3-eu-west-2023523010-3vsve    mt-cluster-1   s3-eu-west    s3://mt-bucket-backup-tl/scheduled/mt-cluster-1-2023-05-02-03:00:10-full   Succeeded   9h          9h

POM (PS) *

NAME                             STORAGE       DESTINATION                                                                     STATE       COMPLETED   AGE
ps-gr-sharding-test              s3-ondemand   s3://mt-bucket-backup-tl/ondemand/ondemand/ps-mysql1-2023-05-01-15:10:04-full   Succeeded   21h         21h
ps-gr-sharding-test-2nd-of-may   s3-ondemand   s3://mt-bucket-backup-tl/ondemand/ondemand/ps-mysql1-2023-05-02-12:22:24-full   Succeeded   27m         27m

To note that as DBA, we still need to validate the backups with a restore procedure, that part is not automated (yet).

*Note that Backup for POM PS is available only on demand given the solution is still in technical preview

When will this solution fit in?

As mentioned multiple times, this solution can cover simple cases of sharding, better if you have shared-nothing.

It also requires work from the DBA side in case of DDL operations or resharding.

You also need to be able to change some SQL code in order to be sure to have present the sharding key/information, in any SQL executed.

When will this solution not fit in?

There are several things that could prevent you to use this solution, the most common ones are:

• You need to query multiple shards at the same time. This is not possible with ProxySQL
• You do not have a DBA to perform administrative work and need to rely on automated system
• Distributed transaction cross shard
• No access to SQL code.

Conclusions

We do not have the Amletic dilemma about sharding or not sharding.

When using a RDBMS like MySQL, if you need horizontal scalability, you need to shard.

The point is there is no magic wand or solution, moving to sharding is an expensive and impacting operation. If you choose it at the beginning, before doing any application development, the effort can be significantly less.

Doing sooner will also allow you to test proper solutions, where proper is a KISS solution, always go for the less complex things, in 2 years you will be super happy about your decision.

If instead you must convert a current solution, then prepare for a bloodshed, or at least for a long journey.

In any case we need to keep in mind few key points:

• Do not believe most of the articles on the internet that promise you infinite scalability for your database. If there is no distinction in the article about a simple database and a RDBMS, run away.
• Do not go for the last shiny things just because they shine. Test them and evaluate IF it makes sense for you. Better to spend a quarter testing now a few solutions, than fight for years with something that you do not fully comprehend.
• Using containers/operators/kubernetes do not scale per se, you must find a mechanism to have the solution scaling, there is absolutely NO difference with premises. What you may get is a good level of automation, however that will come with a good level of complexity, it is up to you to evaluate if it makes sense or not.

As said at the beginning for MYSQL the choice is limited. Vitess is the full complete solution, with a lot of coding to provide you a complete platform to deal with your scaling needs.

However do not be so fast to exclude ProxySQL as possible solutions. There are out there already many using it also for sharding.

This small POC used a synthetic case, but it also shows that with just 4 rules you can achieve a decent solution. A real scenario could be a bit more complex … or not.

References

Vitess (https://vitess.io/docs/)

ProxySQL (https://proxysql.com/documentation/)

Firewalling with ProxySQL (https://www.tusacentral.com/joomla/index.php/mysql-blogs/197-proxysql-firewalling)

Sharding:

• https://www.percona.com/blog/mysql-sharding-with-proxysql/
• https://https://medium.com/pinterest-engineering/sharding-pinterest-how-we-scaled-our-mysql-fleet-3f341e96ca6fwww.percona.com/blog/horizontal-scaling-in-mysql-sharding-followup/
• https://quoraengineering.quora.com/MySQL-sharding-at-Quora
• https://skywalking.apache.org/blog/skywalkings-new-storage-feature-based-on-shardingsphere-proxy-mysql-sharding/
